BRF210F


area-grey

Certifications & Compliance

PCI PTS 5.x, compliant with PCI P2PE, EMVCo L1 & L2 Contact and Contactless security requirements to keep your transactions secure and reduce your compliance costs.

Modular Payment Solution

Available either standalone or paired with the SCR200F reader and/or the SKP200F contactless reader for a complete multi-channel payment solution.

Sizing Options

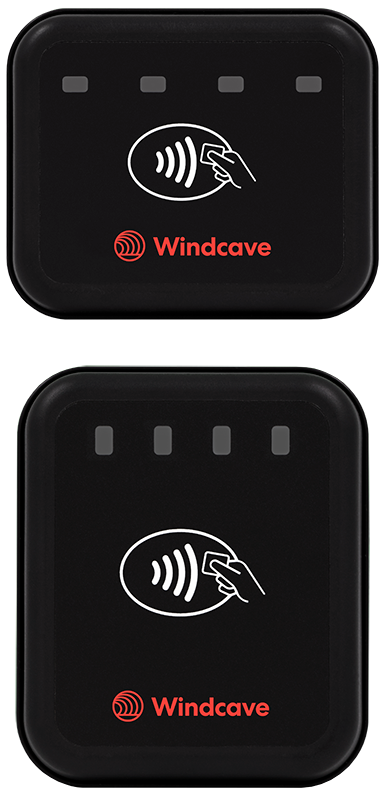

Options for a horizontal or vertical form factor, for the easiest possible integration into your existing solution.

LED Interface

Four LEDs enable visual feedback, communicating the status of contactless payments.

area-grey

Specification


area-grey

Human Interface

4x Indicator LEDs


Audio

Buzzer


Connectivity

1 x RS232 (Serial & Power)


Power Supply

9-45V DC


Dimensions

98 x 81 x 20mm (Antenna)

80 x 56 x 25mm (Controller)


Weight

375g (13 oz)


Operating Humidity

85% non condensing at 40°C/104°F


Storage Temperature

-30°C/-22°F to 85°C/185°F


Operating Temperature

-25°C/-13°F to 75°C/167°F


IP Rating / IK Rating

IP 66 / IK 10
